不同壳材相变微胶囊对深水固井水泥浆水化及孔隙结构演化的调控机理

doi:10.3969/j.issn.2096-1693.2026.03.002

石油科学通报 ›› 2026, Vol. 11 ›› Issue (1): 226-238. doi: 10.3969/j.issn.2096-1693.2026.03.002

不同壳材相变微胶囊对深水固井水泥浆水化及孔隙结构演化的调控机理

吴祖锐¹(), 郑明明¹^,^*(), 张亚伟¹, 杜奕辰¹, 李可赛², 胡云鹏¹

1 成都理工大学地质灾害防治与地质环境保护全国重点实验室，成都 610059
2 成都理工大学油气藏地质及开发工程全国重点实验室，成都 610059

收稿日期:2025-10-29 修回日期:2025-12-04 出版日期:2026-02-15 发布日期:2026-02-12
通讯作者: * 郑明明(1988年—)，博士，教授，博士生导师，主要从事地质工程方面的教学与科研工作，mingming_zheng513@163.com。
作者简介:吴祖锐(2000年—)，博士研究生，主要从事油气井固井与功能性水泥基材料的研究，wuzurui0106@163.com。
基金资助:
国家自然科学基金(42272363);四川省科技计划项目(2023NSFSC0432);地质灾害防治与地质环境保护全国重点实验室自主研究项目(SKLGP2023Z019)

Regulation mechanisms of phase change microcapsules with different shell materials on hydration and pore structure evolution in deepwater well cementing slurry

WU Zurui¹(), ZHENG Mingming¹^,^*(), ZHANG Yawei¹, DU Yichen¹, LI Kesai², HU Yunpeng¹

1 State Key Laboratory of Geohazard Prevention and Geoenvironment Protection, Chengdu University of Technology, Chengdu 610059, China
2 State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Chengdu University of Technology, Chengdu 610059, China

Received:2025-10-29 Revised:2025-12-04 Online:2026-02-15 Published:2026-02-12
Contact: *mingming_zheng513@163.com

摘要/Abstract

摘要：

为调控深水固井水泥浆水化热，本研究制备了有机(PMMA)和无机(SiO₂)壳材的相变微胶囊(m-PCM)，探究了壳材性质对水泥基体性能的影响机制。结果表明，两种m-PCM均具有优异的剪切稳定性和相近的相变峰值温度(25.6 ℃)，能有效降低水化放热。关键差异在于：PMMA@m-PCM呈疏水性(116.5°)，而SiO₂@m-PCM呈强亲水性(27.3°)。Micro-CT证实，6 wt%掺量的m-PCM有效减少了大孔隙占比，优化了孔结构。力学测试显示，SiO₂@m-PCM在3天和7天龄期均表现出显著的强度增强效果，而PMMA@m-PCM则严重削弱了基体强度。SEM分析揭示，性能差异的核心在于界面相容性：亲水的SiO₂壳材与基体形成了致密的界面过渡区(ITZ)，而疏水的PMMA壳材导致了严重的界面脱粘，构成了力学薄弱点。研究表明，采用亲水性无机壳材是实现m-PCM水化热调控与力学性能增强相统一的关键。这些结果为设计低热水泥浆提供了新方法，为安全、可持续的深海油气开采提供了理论和技术见解，减少了生态影响。

关键词: 微胶囊相变材料, 固井水泥浆, 水化热致裂缝, 孔隙分布, Micro-CT

Abstract:

To regulate the hydration heat of deep-water well cementing slurry, phase change microcapsules (m-PCMs) with organic (PMMA) and inorganic (SiO₂) shells were prepared in this study to investigate the influence mechanism of shell properties on the cement matrix performance. The results indicated that both types of m-PCMs exhibited excellent shear stability and similar peak phase change temperatures (25.6 °C), effectively reducing hydration exotherms. The critical difference lay in their wettability: PMMA@m-PCM was hydrophobic (116.5°), whereas SiO₂@m-PCM was strongly hydrophilic (27.3°). Micro-CT confirmed that m-PCMs at a 6 wt% dosage effectively reduced the proportion of large pores, optimizing the pore structure. Mechanical tests revealed that SiO₂@m-PCM demonstrated a significant strength enhancement effect at 3 and 7 days, while PMMA@m-PCM severely weakened the matrix strength. SEM analysis revealed that the core of this performance disparity was interfacial compatibility: the hydrophilic SiO₂ shell formed a dense interfacial transition zone (ITZ) with the matrix, whereas the hydrophobic PMMA shell caused severe interfacial debonding, creating mechanical weak points. This study demonstrates that using hydrophilic inorganic shells is key to achieving the unification of m-PCM hydration heat regulation and mechanical performance enhancement. These findings provide a new methodology for designing low-heat cement slurries, offering theoretical and technical insights for safe and sustainable deep-sea oil and gas exploitation and reducing ecological impact.

Key words: microencapsulated phase change materials, cementing slurry, fracture caused by hydration heat, pore distribution, Micro-CT

中图分类号:

TE256

吴祖锐, 郑明明, 张亚伟, 杜奕辰, 李可赛, 胡云鹏. 不同壳材相变微胶囊对深水固井水泥浆水化及孔隙结构演化的调控机理[J]. 石油科学通报, 2026, 11(1): 226-238.

WU Zurui, ZHENG Mingming, ZHANG Yawei, DU Yichen, LI Kesai, HU Yunpeng. Regulation mechanisms of phase change microcapsules with different shell materials on hydration and pore structure evolution in deepwater well cementing slurry[J]. Petroleum Science Bulletin, 2026, 11(1): 226-238.

https://sykxtb.cup.edu.cn/CN/Y2026/V11/I1/226

图/表 12

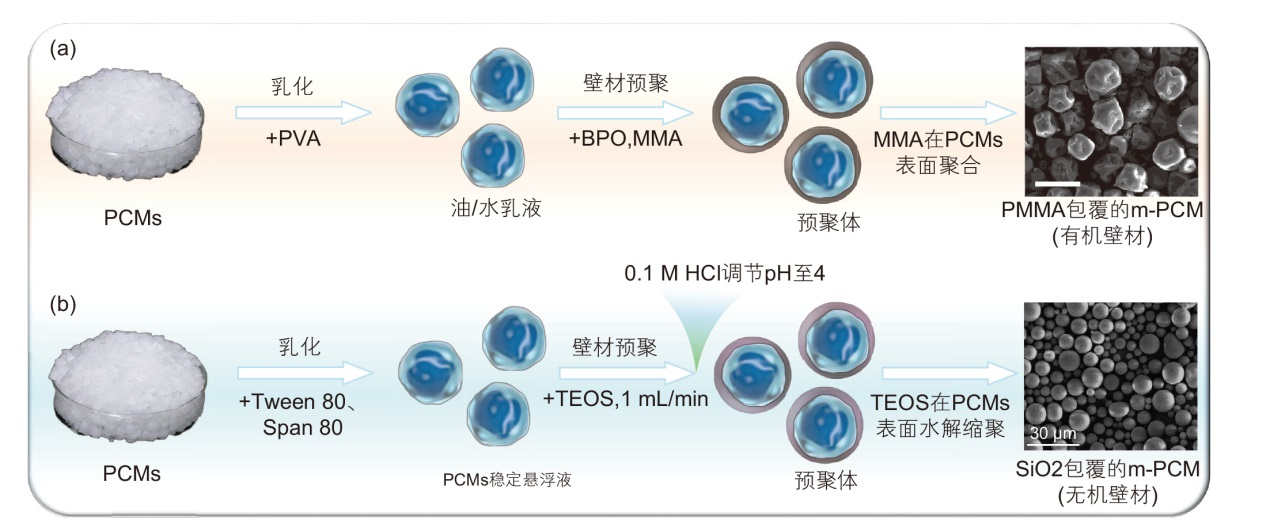

图1 m-PCM的合成流程示意图^[39]
(a) PMMA@m-PCM(有机壳材)；(b) SiO₂@m-PCM(无机壳材)

Fig. 1 Schematic diagram of the synthesis process of m-PCM^[39]

表1 人工海水主要离子浓度

Table 1 Concentrations of major ions in artificial seawater

离子	浓度/(mg/L)
镁离子(Mg²⁺)	1270
钙离子(Ca²⁺)	405
钠离子(Na⁺)	10 770
氯离子(Cl^-)	18 980
硫酸根离子(SO₄^2-)	2580

表2 水泥浆配方的标准化设计

Table 2 Standardized mix design of cement paste

测试组	水泥/g	拌合水/g	PMMA@m-PCM含量/wt%	SiO₂@m-PCM含量/wt%	Ⅰ/g	Ⅱ/g	Ⅲ/g	Ⅳ/g	天数/d
对照组	100	50	None	None	2	1	0.55	0.5	3/7
PMMA@m-PCM	100	50	3, 6, 9, 12	None	2	1	0.55	0.5	3/7
SiO₂@m-PCM	100	50	None	3, 6, 9, 12	2	1	0.55	0.5	3/7

图2 nanoVoxel 3000工业CT设备及扫描原理

Fig. 2 NanoVoxel 3000 industrial CT equipment and scanning principle

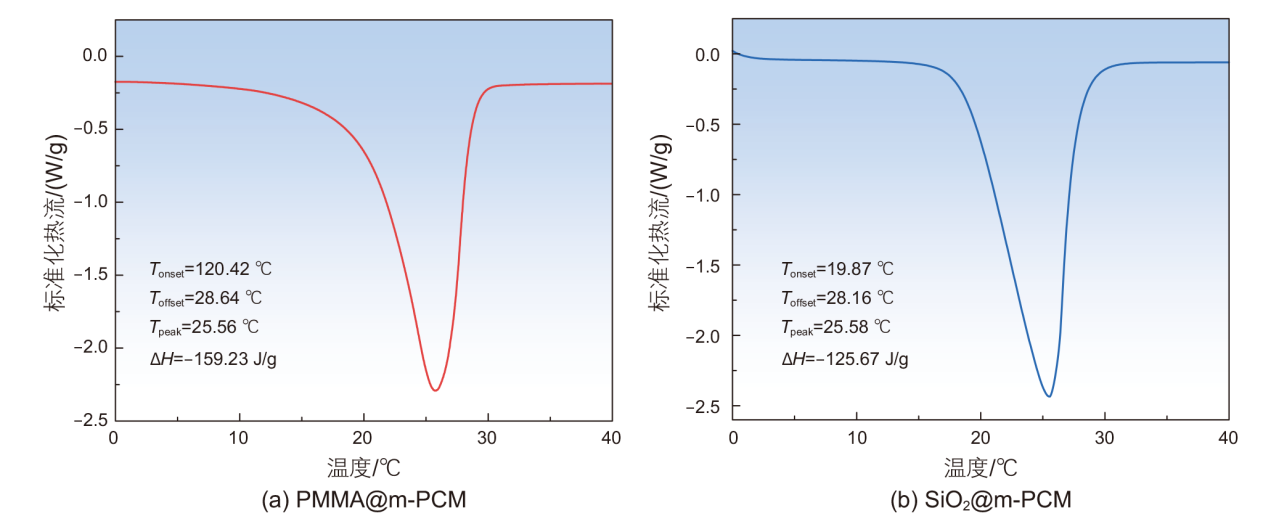

图3 m-PCM的DSC曲线

Fig. 3 DSC curves of m-PCM

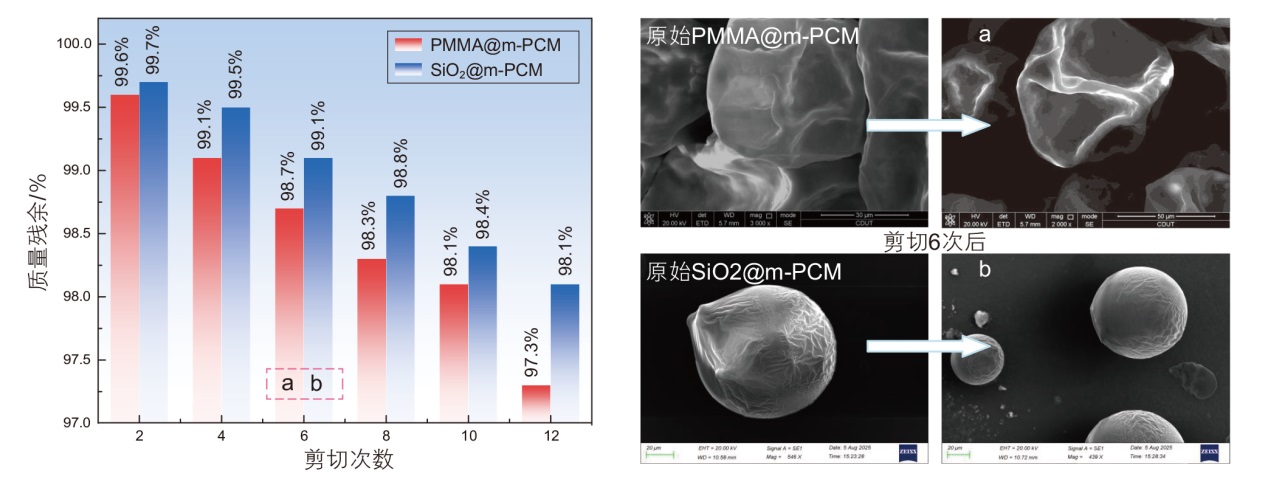

图4 m-PCM的剪切稳定性及循环6次后的微观形貌变化

Fig. 4 The shear stability of m-PCM and the microscopic morphological changes after 6 cycles

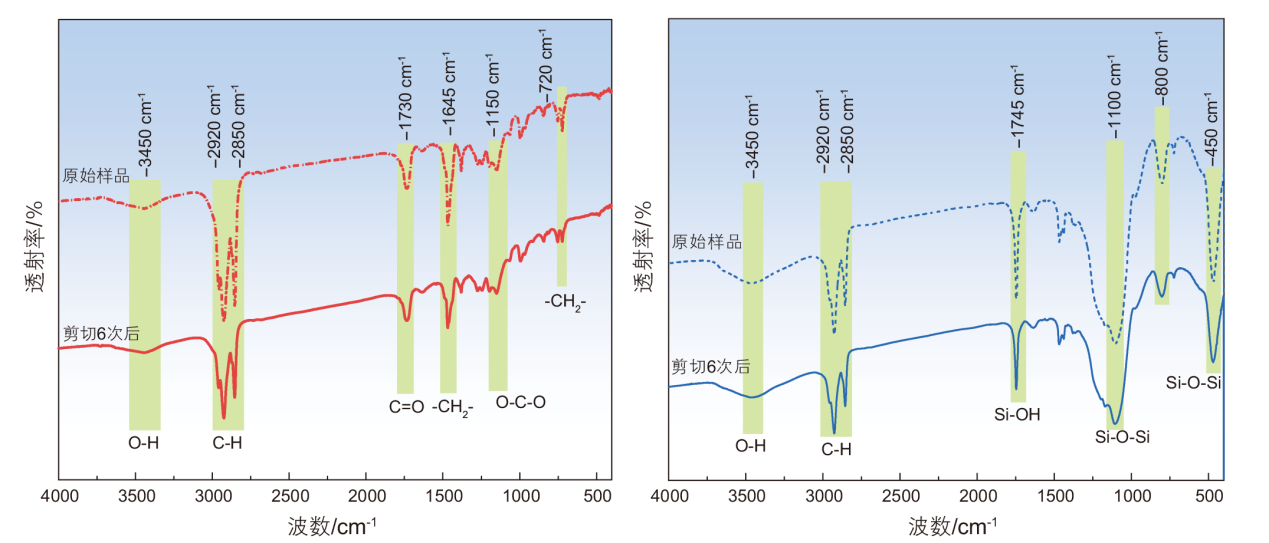

图5 (a) PMMA@m-PCM和 (b) SiO₂@m-PCM剪切6次前后的FTIR图谱

Fig. 5 FTIR spectra of (a) PMMA@m-PCM and (b) SiO₂@m-PCM before and after 6 shear cycles

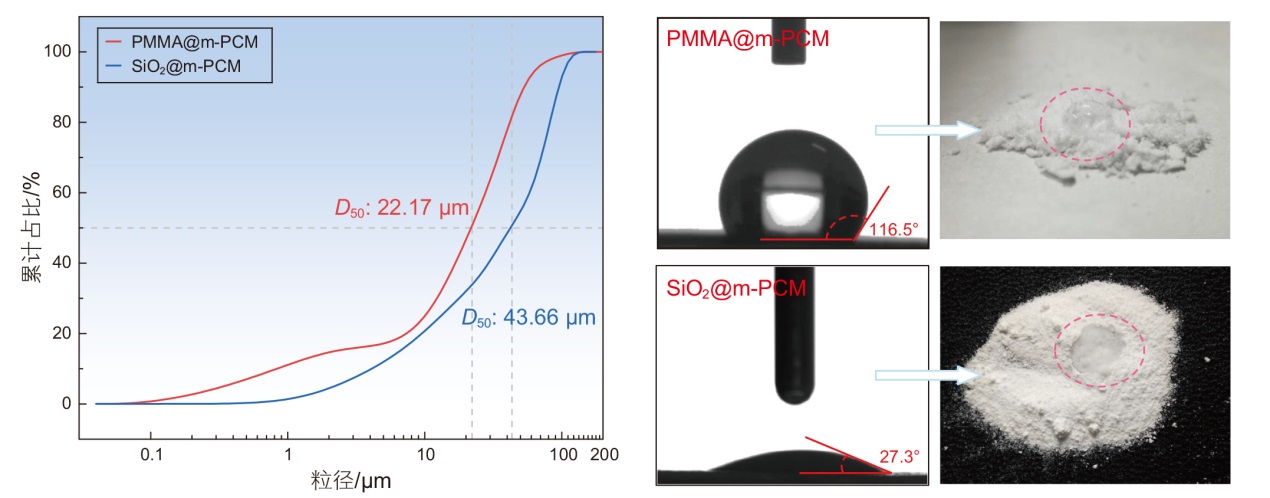

图6 两种m-PCM的粒径分布与润湿性分析

Fig. 6 Particle size distribution and wettability analysis of the two types of m-PCM

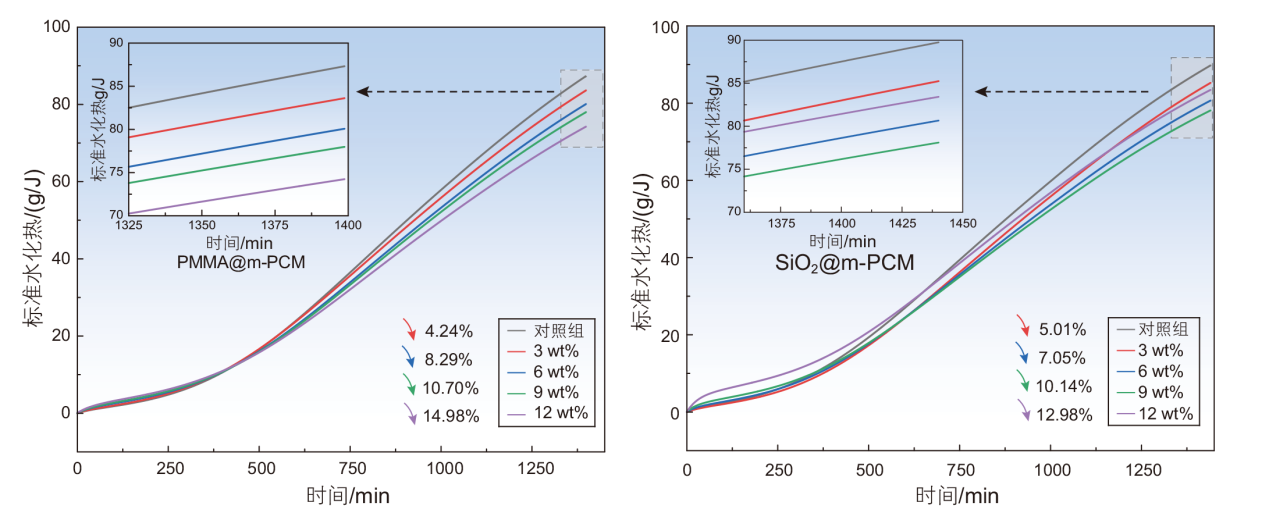

图7 (a) PMMA@m-PCM和 (b) SiO₂@m-PCM对水泥浆水化放热量的影响

Fig. 7 The influence of PMMA@m-PCM and (b) SiO₂@m-PCM on the heat of hydration of cement paste

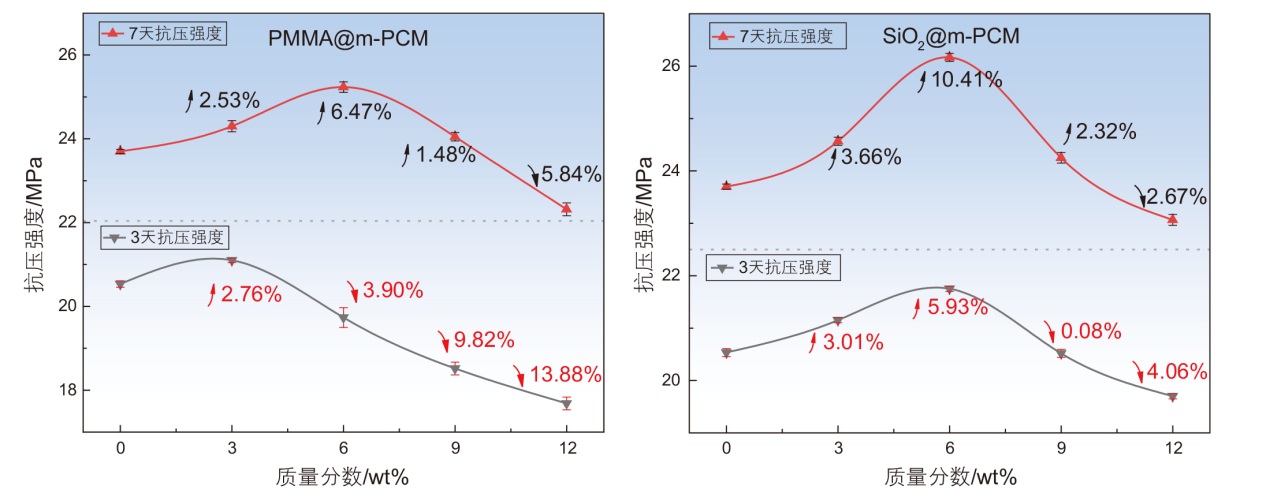

图8 (a) PMMA@m-PCM和 (b) SiO₂@m-PCM掺量对3天、7天抗压强度的影响

Fig. 8 (a) The influence of the content of PMMA@m-PCM and (b) the influence of the content of SiO₂@m-PCM on the compressive strength at 3 days and 7 days

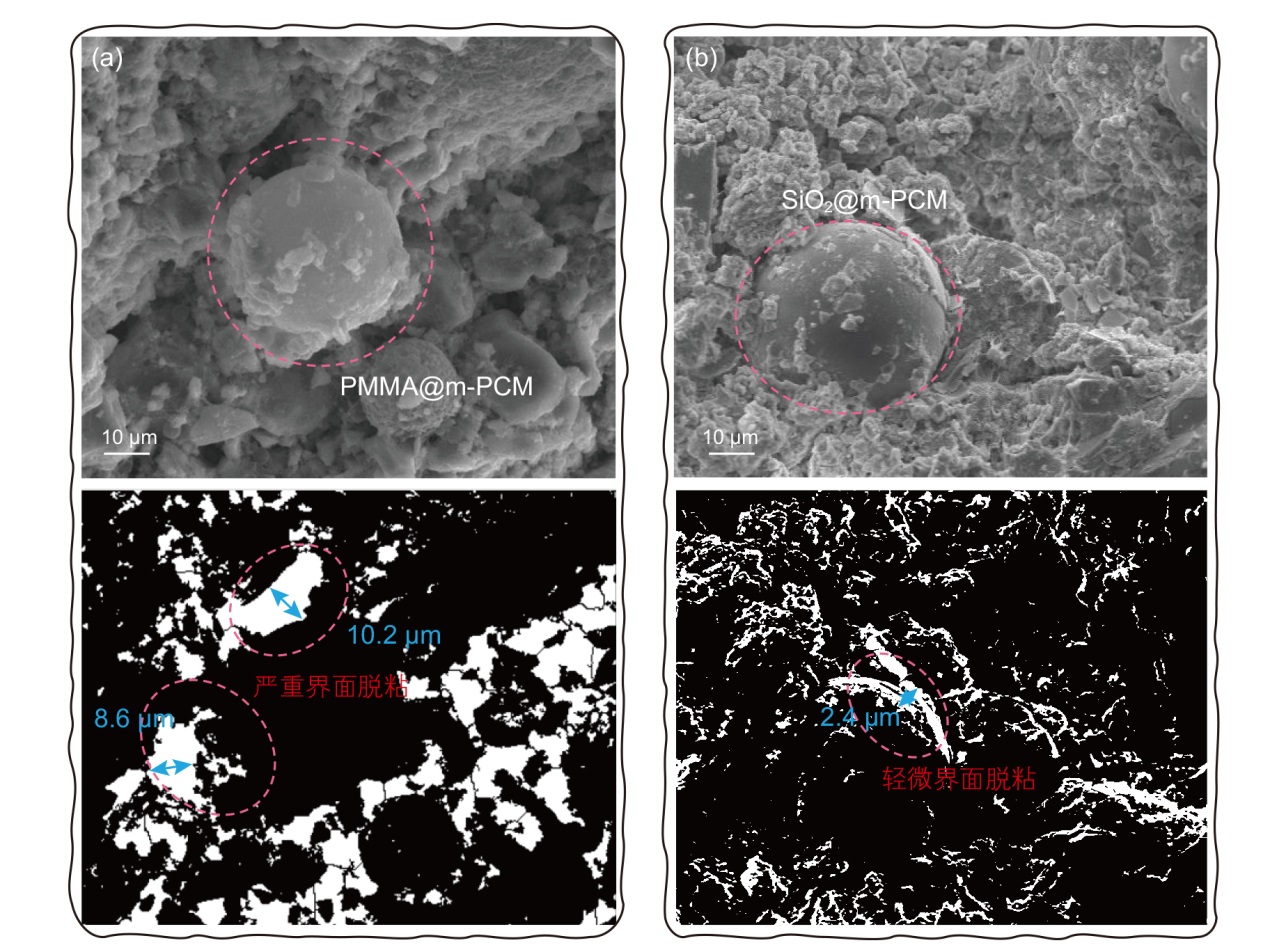

图9 掺量为6 wt%时(a) PMMA@m-PCM和(b) SiO₂@m-PCM微胶囊与基体界面的SEM及二值化图像

Fig. 9 SEM images and corresponding binarized images of the interface between the matrix and microcapsules at a loading of 6 wt%: (a) PMMA@m-PCM and (b) SiO₂@m-PCM

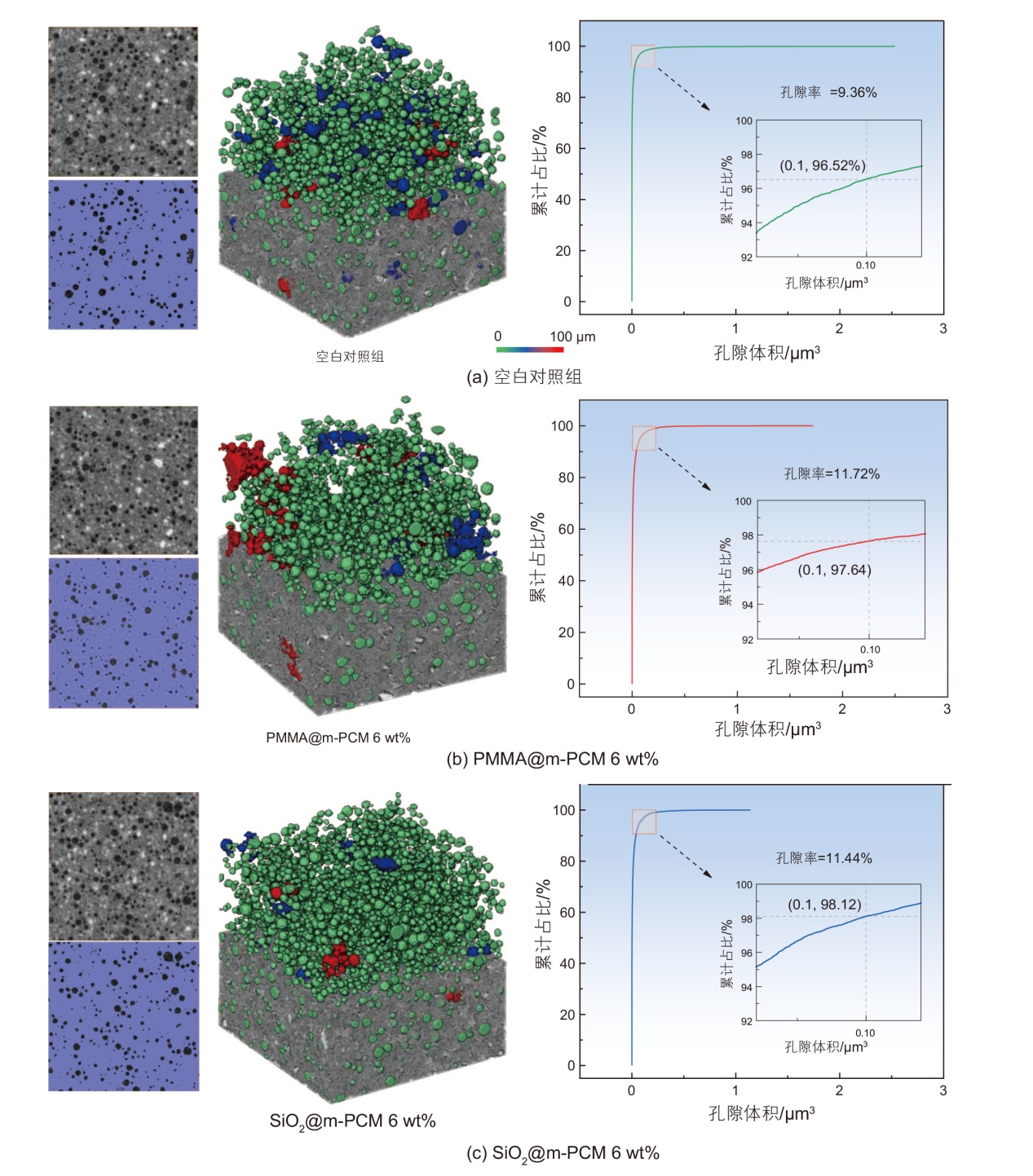

图10 不同样品的孔隙结构Micro-CT分析结果：(a) 空白对照组，(b) PMMA@m-PCM 6 wt%，(c) SiO₂@m-PCM 6 wt%

Fig. 10 Analysis results of pore structure of different samples by Micro-CT: (a) Blank control group, (b) PMMA@m-PCM 6 wt%, (c) SiO₂@m-PCM 6 wt%

参考文献 44

[1]	JIA C-Z, PANG X-Q, SONG Y. Whole petroleum system and ordered distribution pattern of conventional and unconventional oil and gas reservoirs[J]. Petroleum Science, 2023, 20(1): 1-19. doi: 10.1016/j.petsci.2022.12.012 URL
[2]	HE D, JIA C, ZHAO W, et al. Research progress and key issues of ultra-deep oil and gas exploration in China[J]. Petroleum Exploration and Development, 2023, 50(6): 1333-1344. doi: 10.1016/S1876-3804(24)60470-2
[3]	TONG X, ZHANG G, WANG Z, et al. Distribution and potential of global oil and gas resources[J]. Petroleum Exploration and Development, 2018, 45(4): 779-789. doi: 10.1016/S1876-3804(18)30081-8 URL
[4]	ZHANG G, QU H, CHEN G, et al. Giant discoveries of oil and gas fields in global deepwaters in the past 40 years and the prospect of exploration[J]. Journal of Natural Gas Geoscience, 2019, 4(1): 1-28. doi: 10.1016/j.jnggs.2019.03.002 URL
[5]	WEN Z, WANG J, WANG Z, et al. Analysis of the world deepwater oil and gas exploration situation[J]. Petroleum Exploration and Development, 2023, 50(5): 1060-1076. doi: 10.1016/S1876-3804(23)60449-5
[6]	GAO D, WANG Y. New advances in the mechanics and design control technology of deepwater drilling casing columns[J]. Bulletin of Petroleum Science, 2016, 1(01): 61-80.
[7]	DU J, JIN Y, LI K, et al. Experimental study on the sealing performance of cement stone gas[J]. Bulletin of Petroleum Science, 2018, 3(03): 313-319.
[8]	ZHENG M, WANG X, ZHOU K, et al. Critical conditions identification of generated high-pressure gas and water reverse penetration during cementing in hydrate reservoirs in the South China Sea[J]. Journal of Central South University: Science and Technology, 2022, 53(03): 963-975.
[9]	WANG C, ZHAO F, XUE Y, et al. Development and performance evaluation of temperature-accelerating composite phase change absorbents for Marine hydrate cementing[J]. Natural gas industry, 2025, 45(06): 182-192.
[10]	LIU T, LI Z, YANG G, et al. The influence of cement slurry with phase-change microcapsules on thermal stability of natural gas hydrate layers during well cementing: A simulation work[J]. Applied Thermal Engineering, 2025, 267: 125691. doi: 10.1016/j.applthermaleng.2025.125691 URL
[11]	LI L, LIANG Q, YU Y, et al. Microbial self-healing cementing slurry: A promising technology in deepwater with gas hydrate formations[J]. Gas Science and Engineering, 2025, 139: 205637. doi: 10.1016/j.jgsce.2025.205637 URL
[12]	YU Y-S, ZHANG X, LIU J-W, et al. Natural gas hydrate resources and hydrate technologies: a review and analysis of the associated energy and global warming challenges[J]. Energy & Environmental Science, 2021, 14(11): 5611-5668.
[13]	HUANG L, YIN Z, WAN Y, et al. Evaluation and comparison of gas production potential of the typical four gas hydrate deposits in Shenhu area, South China sea[J]. Energy, 2020, 204.
[14]	MINGMING Z, ZHOU K, WU Z, et al. A simulation study on the formation mechanisms of gas hydrates in pores of gas hydrate-bearing sediments in the South China Sea[J]. Coal Geology & Exploration, 2023, 51(05): 54-65.
[15]	YAN S, ZHENG M, WU Z, et al. Hydrate decomposition and its influence on cement sheath strength in cementing process[J]. Geoenergy Science and Engineering, 2026, 257: 214221. doi: 10.1016/j.geoen.2025.214221 URL
[16]	SKOGDALEN J E, UTNE I B, VINNEM J E. Developing safety indicators for preventing offshore oil and gas deepwater drilling blowouts[J]. Safety Science, 2011, 49(8-9): 1187-1199. doi: 10.1016/j.ssci.2011.03.012 URL
[17]	YANG G, LIU T, ALEKSANDRAVIH B P, et al. Temperature regulation effect of low melting point phase change microcapsules for cement slurry in nature gas hydrate-bearing sediments[J]. Energy, 2022, 253.
[18]	ZHENG M, LIU T, JIANG G, et al. Large-scale and high-similarity experimental study of the effect of drilling fluid penetration on physical properties of gas hydrate-bearing sediments in the Gulf of Mexico[J]. Journal of Petroleum Science and Engineering, 2020, 187.
[19]	SONG Y, LI Z, JIANG Z, et al. Progress and development trend of unconventional oil and gas geological research[J]. Petroleum Exploration and Development, 2017, 44(4): 675-685. doi: 10.1016/S1876-3804(17)30077-0 URL
[20]	HU W, BAO J, HU B. Trend and progress in global oil and gas exploration[J]. Petroleum Exploration and Development, 2013, 40(4): 439-443. doi: 10.1016/S1876-3804(13)60055-5 URL
[21]	ARCHER D. Methane hydrate stability and anthropogenic climate change[J]. Biogeosciences, 2007, 4(4): 521-544. doi: 10.5194/bg-4-521-2007 URL
[22]	RUFFINE L, TANG A M, O’NEILL N, et al. Environmental challenges related to methane hydrate decomposition from climate change scenario and anthropic activities: State of the art, potential consequences and monitoring solutions[J]. Earth-Science Reviews, 2023, 246.
[23]	LIU H, BU Y, GUO Q, et al. Converting hydration heat to achieve cement mixture with early strength and low hydrating-thermal dissipation[J]. Construction and Building Materials, 2017, 151: 113-118. doi: 10.1016/j.conbuildmat.2017.06.098 URL
[24]	BU Y, MA R, LIU H, et al. Low hydration exothermic well cement system: The application of energy storage microspheres prepared by high-strength hollow microspheres carrying phase change materials[J]. Cement and Concrete Composites, 2021, 117.
[25]	YANG G, LEI G, LIU T, et al. Development and application of low-melting-point microencapsulated phase change materials for enhanced thermal stability in cementing natural gas hydrate layers[J]. Geoenergy Science and Engineering, 2024, 238: 212846. doi: 10.1016/j.geoen.2024.212846 URL
[26]	SUN L, PANG X, YAN H. Hydration kinetics of oil well cement in the temperature range between 5 and 30°C[J]. Frontiers in Materials, 2022, 9, 985332.
[27]	ZHENG M, WU Z, LIU T, et al. Optimization of microcrack control and performance in deepwater well cementing with microencapsulated phase change materials[J]. Geoenergy Science and Engineering, 2026, 257: 214220. doi: 10.1016/j.geoen.2025.214220 URL
[28]	LI X, HU M, LIU M, et al. Preparation of hydrated calcium silicate phase change microcapsules and its application of temperature regulation in deep-water natural gas hydrate layer cementing process[J]. Construction and Building Materials, 2024, 428: 136413. doi: 10.1016/j.conbuildmat.2024.136413 URL
[29]	ZHENG M, WU Z, YAN S, et al. Impacts and regulation mechanisms of phase-change wall microspheres on cement slurry performance in well cementing[J]. Coal Geology & Exploration, 2024, 52(11): 183-191.
[30]	JAMEKHORSHID A, SADRAMELI S M, FARID M. A review of microencapsulation methods of phase change materials (PCMs) as a thermal energy storage (TES) medium[J]. Renewable and Sustainable Energy Reviews, 2014, 31: 531-542. doi: 10.1016/j.rser.2013.12.033 URL
[31]	HUNGER M, ENTROP A G, MANDILARAS I, et al. The behavior of self-compacting concrete containing micro-encapsulated Phase Change Materials[J]. Cement and Concrete Composites, 2009, 31(10): 731-743. doi: 10.1016/j.cemconcomp.2009.08.002 URL
[32]	HAMAD G B, YOUNSI Z, NAJI H, et al. A Comprehensive Review of Microencapsulated Phase Change Materials Synthesis for Low-Temperature Energy Storage Applications[J]. Applied Sciences, 2021, 11(24), 11900.
[33]	ALVA G, LIN Y, LIU L, et al. Synthesis, characterization and applications of microencapsulated phase change materials in thermal energy storage: A review[J]. Energy and Buildings, 2017, 144: 276-294. doi: 10.1016/j.enbuild.2017.03.063 URL
[34]	WU Z, ZHENG M, YAN S, et al. Multi-scale thermo-mechanical synergistic enhancement mechanism of carbon nanotube-functionalized microencapsulated phase change materials in cement-based materials[J]. Construction and Building Materials, 2025, 505: 144781. doi: 10.1016/j.conbuildmat.2025.144781 URL
[35]	LIU F, ZHANG Z, LIAO B, et al. Recent advances in phase change microcapsules for oilfield applications[J]. Advances in Geo-Energy Research, 2025, 16(3): 211-228. doi: 10.46690/ager URL
[36]	LECOMPTE T, LE BIDEAU P, GLOUANNEC P, et al. Mechanical and thermo-physical behaviour of concretes and mortars containing phase change material[J]. Energy and Buildings, 2015, 94: 52-60. doi: 10.1016/j.enbuild.2015.02.044 URL
[37]	CAI J, REN Q, LIU S, et al. Phase change composite materials of sodium alginate-SiO2 aerogel loaded with sodium sulfate decahydrate for cementing of natural gas hydrate layers[J]. Chemical Engineering Journal, 2025, 505: 159344. doi: 10.1016/j.cej.2025.159344 URL
[38]	HU H, YU Z, LV Y, et al. Development of thermo-sensitive core-shell microcapsules fabricated by a facile vibrational melt coating method toward a heat-triggered set on demand of ordinary Portland cement[J]. Cement and Concrete Composites, 2025, 164: 106268. doi: 10.1016/j.cemconcomp.2025.106268 URL
[39]	ZHENG M, WU Z, YAN S, et al. A phase change microcapsule and its preparation method, CN117821025B[P/OL], 2024-05-10.
[40]	OTSU N. A Threshold Selection Method from Gray-Level Histograms[J]. IEEE Transactions on Systems Man & Cybernetics, 2007, 9(1): 62-66.
[41]	STRUGARIU M L, ȘERBAN S G, BERDIE A M, et al. Infrared spectra of the main optical properties of poly(methyl methacrylate) thin films[J]. Polymer Bulletin, 2024, 81(12): 11257-71. doi: 10.1007/s00289-024-05242-9
[42]	ZHENG M, ZHANG Y, YAN S, et al. Effect of carrier-encapsulated microbial calcium carbonate on the performance of cement mortar[J]. Construction and Building Materials, 2025, 483: 141579. doi: 10.1016/j.conbuildmat.2025.141579 URL
[43]	WANG P, LI C, DU Z, et al. Enhanced self-healing performance of cementitious materials using nano-SiO2 modified ethyl cellulose microcapsules[J]. Construction and Building Materials, 2025, 458: 139555. doi: 10.1016/j.conbuildmat.2024.139555 URL
[44]	MOSTOFINEJAD D, ABDOLI M, SALJOUGHIAN A, et al. Sustainable PCM-integrated lightweight concrete with improved mechanical and thermal performance: A comparative study of impregnation and microencapsulation[J]. Construction and Building Materials, 2025, 498: 143957. doi: 10.1016/j.conbuildmat.2025.143957 URL
