深层砂岩油藏微观孔隙结构及分形特征

doi:10.3969/j.issn.2096-1693.2026.02.019

石油科学通报 ›› 2026, Vol. 11 ›› Issue (3): 935-947. doi: 10.3969/j.issn.2096-1693.2026.02.019

深层砂岩油藏微观孔隙结构及分形特征

刘奇¹(), 姚约东¹^,^*(), 王振杰², 王秀伟², 李天富¹, 周虹宇¹, 苏耀海¹

¹ 中国石油大学(北京)油气资源与工程全国重点实验室，北京 102249
² 中国石油天然气股份有限公司华北油田分公司，任丘 062552

收稿日期:2025-12-16 修回日期:2026-02-27 出版日期:2026-06-15 发布日期:2026-06-30
通讯作者: *姚约东(1972年—)，教授，博导，主要从事油气渗流理论与应用，非常规油气田开发研究，yaoyuedong@cup.edu.cn。
作者简介:刘奇(1996年—)，在读博士研究生，主要从事油气藏储层孔隙结构特征及流体渗流规律研究，2022310172@student.cup.edu.cn。
基金资助:
应用性科技重大专项“超深层油气藏开发关键技术研究与应用”(2023ZZ14YJ03);中国石油天然气股份有限公司攻关性

Microscopic pore structure and fractal characteristics of deep sandstone reservoir

LIU Qi¹(), YAO Yuedong¹^,^*(), WANG Zhenjie², WANG Xiuwei², LI Tianfu¹, ZHOU Hongyu¹, SU Yaohai¹

¹ State Key Laboratory of Petroleum Resources and Engineering, China University of Petroleum, Beijing 102249, China
² PetroChina Huabei Oilfield Company, Renqiu 062552, China

Received:2025-12-16 Revised:2026-02-27 Online:2026-06-15 Published:2026-06-30
Contact: *yaoyuedong@cup.edu.cn

摘要/Abstract

摘要：

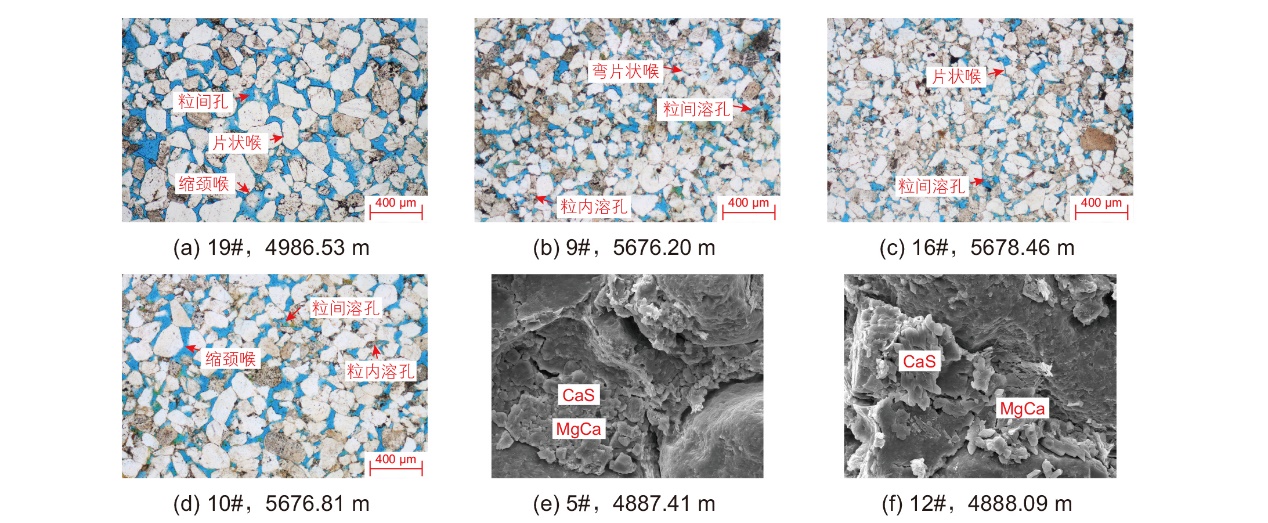

以国内某深层砂岩油藏为研究对象，通过铸体薄片、扫描电镜(SEM)、高压压汞(HPMI)和核磁共振(NMR)实验，对19块岩心样品的孔隙结构展开多尺度定量表征。基于HPMI和NMR获得的孔喉参数将储层划分为Ⅰ-Ⅳ类4种类型，储集性能和渗流能力依次降低，孔喉结构复杂性和非均质性逐渐增强。利用分形理论分别计算HPMI与NMR分形维数，系统分析了储层物性、孔喉特征与分形维数之间的关系。结果表明：研究区储层以原生粒间孔为主，整体呈中孔—低渗特征，非均质性较强。HPMI分型曲线未见分段，分形维数为2.6602~2.8428(平均2.7508)，均大于2.5，表明孔喉结构分布连续但非均质性较强连通性差，其与孔隙度、渗透率呈负相关，与排驱压力、退汞效率呈正相关；NMR分形曲线呈两段式特征，有效孔隙分形维数(0.8034~1.9995，平均1.4163)与储层物性参数无明显相关；可动孔隙分形维数(2.7232~2.9773，平均2.8644)与孔隙度、渗透率呈负相关。HPMI分形维数与NMR可动孔隙分形维数在数值范围与变化趋势上具有较好的一致性，均能有效表征储层连通孔隙体系的复杂性。研究结果可为深层砂岩储层分类评价与精细开发提供依据。

关键词: 深层油藏, 孔隙结构, 高压压汞, 核磁共振, 分形维数

Abstract:

Taking a deep sandstone reservoir in China as the study object, the pore structure of 19 core samples was quantitatively characterized at multiple scales using cast thin sections, scanning electron microscopy (SEM), high-pressure mercury intrusion (HPMI), and nuclear magnetic resonance (NMR). Based on pore-throat parameters derived from HPMI and NMR, the reservoir was classified into four types (I-IV), with reservoir quality and seepage capacity progressively decreasing and pore-throat complexity and heterogeneity correspondingly increasing. Fractal theory was further introduced to calculate fractal dimensions from both HPMI and NMR, thereby elucidating the relationships among petrophysical properties, pore-throat characteristics, and fractal parameters. Results indicate that the reservoir is dominated by primary intergranular pores and is overall characterized by moderate porosity and low permeability with pronounced heterogeneity. The HPMI fractal curve exhibits no segmentation, with fractal dimensions ranging from 2.6602 to 2.8428 (average 2.7508), all exceeding 2.5, suggesting a continuous pore-throat size distribution but strong heterogeneity and poor connectivity. The HPMI fractal dimension is negatively correlated with porosity and permeability, while positively correlated with displacement pressure and mercury withdrawal efficiency. In contrast, the NMR fractal curve shows a two-segment pattern: The fractal dimension of effective pores ranges from 0.8034 to 1.9995 (average 1.4163) and shows no clear correlation with petrophysical properties, whereas the fractal dimension of movable pores ranges from 2.7232 to 2.9773 (average 2.8644) and is negatively correlated with porosity and permeability. The HPMI fractal dimension is in good agreement with the NMR movable-pore fractal dimension in terms of both numerical range and variation trend, and both effectively characterize the complexity of the connected pore system. These results provide a basis for the classification, evaluation, and fine-scale development of deep sandstone reservoirs.

Key words: deep reservoir, pore structure, high-pressure mercury intrusion (HPMI), nuclear magnetic resonance (NMR), fractal dimension

中图分类号:

刘奇, 姚约东, 王振杰, 王秀伟, 李天富, 周虹宇, 苏耀海. 深层砂岩油藏微观孔隙结构及分形特征[J]. 石油科学通报, 2026, 11(3): 935-947.

LIU Qi, YAO Yuedong, WANG Zhenjie, WANG Xiuwei, LI Tianfu, ZHOU Hongyu, SU Yaohai. Microscopic pore structure and fractal characteristics of deep sandstone reservoir[J]. Petroleum Science Bulletin, 2026, 11(3): 935-947.

https://sykxtb.cup.edu.cn/CN/Y2026/V11/I3/935

图/表 11

参考文献 34

[1]	张光亚, 马锋, 梁英波, 等. 全球深层油气勘探领域及理论技术进展[J]. 石油学报, 2015, 36(9): 1156-1166. doi: 10.7623/syxb201509015
	[ZHANG G Y, MA F, LIANG Y B, et al. Domain and theory-technology progress of global deep oil & gas exploration[J]. Acta Petrolei Sinica, 2015, 36(9): 1156-1166.] doi: 10.7623/syxb201509015
[2]	许华明, 丛海月, 侯平舒, 等. 我国深层—超深层油气资源探矿权管理存在的问题及政策建议[J]. 中国石油勘探, 2023, 28(6): 70-77.
	[XU H M, CONG H Y, HOU P S, et al. Issues and policy suggestions in exploration rights management of deep to ultra-deep oil and gas resources in China[J]. China Petroleum Exploration, 2023, 28(6): 70-77.]
[3]	PANG X Q, JIA C Z, WANG W Y. Petroleum geology features and research developments of hydrocarbon accumulation in deep petroliferous basins[J]. Petroleum Science, 2015, 12(1): 1-53. doi: 10.1007/s12182-015-0014-0 URL
[4]	张全培, 吴文瑞, 刘丽萍, 等. 鄂尔多斯盆地镇北地区延长组超低渗透储层孔隙结构及其分形特征[J]. 油气地质与采收率, 2020, 27(3): 20-31.
	[ZHANG Q P, WU W R, LIU L P, et al. Pore structure and fractal characteristics of ultra-low permeability reservoirs in Yanchang Formation in Zhenbei area, Ordos Basin[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(3): 20-31.]
[5]	王秀伟, 姚约东, 周虹宇, 等. 巴彦油田超深储层孔隙结构特征及分类评价[J]. 西安石油大学学报(自然科学版), 2026, 41(3): 44-54,64.
	[WANG X W, YAO Y D, ZHOU H Y, et al. Pore structure characteristics and classification evaluation of ultra-deepreservoir in Bayan Oilfield[J]. Journal of Xi’an Shiyou University (Natural Science Edition), 2026, 41(3): 44-54,64.]
[6]	LIU K Q, OSTADHASSAN M. Multi-scale fractal analysis of pores in shale rocks[J]. Journal of Applied Geophysics, 2017, 140: 1-10. doi: 10.1016/j.jappgeo.2017.02.028 URL
[7]	朱汉卿, 贾爱林, 位云生, 等. 低温氩气吸附实验在页岩储层微观孔隙结构表征中的应用[J]. 石油实验地质, 2018, 40(4): 559-565.
	[ZHU H Q, JIA A L, WEI Y S, et al. Microscopic pore structure characteristics of shale reservoir based on low-temperature argon adsorption experiments[J]. Petroleum Geology and Experiment, 2018, 40(4): 559-565.]
[8]	LI A, DING W L, WANG R Y, et al. Petrophysical characterization of shale reservoir based on nuclear magnetic resonance (NMR) experiment: A case study of Lower Cambrian Qiongzhusi Formation in eastern Yunnan Province, South China[J]. Journal of Natural Gas Science and Engineering, 2017, 37: 29-38. doi: 10.1016/j.jngse.2016.11.034 URL
[9]	房涛, 张立宽, 刘乃贵, 等. 核磁共振技术定量表征致密砂岩气储层孔隙结构: 以临清坳陷东部石炭系—二叠系致密砂岩储层为例[J]. 石油学报, 2017, 38(8): 902-915. doi: 10.7623/syxb201708005
	[FANG T, ZHANG L K, LIU N G, et al. Quantitative characterization of pore structure of tight gas sandstone reservoirs by NMR T₂ spectrum technology: A case study of Carboniferous-Permian tight sandstone reservoir in Linqing depression[J]. Acta Petrolei Sinica, 2017, 38(8): 902-915.]
[10]	田伟, 刘慧卿, 何顺利, 等. 吉木萨尔凹陷芦草沟组致密油储层岩石微观孔隙结构表征[J]. 油气地质与采收率, 2019, 26(4): 24-32.
	[TIAN W, LIU H Q, HE S L, et al. Characterization of microscopic pore structure of tight oil reservoirs in Lucaogou Formation, Jimusaer Sag[J]. Petroleum Geology and Recovery Efficiency, 2019, 26(4): 24-32.]
[11]	KUMAR S, CHANDRA D, HAZRA B, et al. Integration of fluid-invasive, scattering, and imaging methods in resolving pore structures in coal and shale[J]. Fuel, 2025, 395: 135185. doi: 10.1016/j.fuel.2025.135185 URL
[12]	李祥春, 高佳星, 张爽, 等. 基于扫描电镜、孔隙—裂隙分析系统和气体吸附的煤孔隙结构联合表征[J]. 地球科学, 2022, 47(5): 1876-1889.
	[LI X C, GAO J X, ZHANG S, et al. Combined characterization of scanning electron microscopy, pore and crack analysis system, and gas adsorption on pore structure of coal with different volatilization[J]. Earth Science, 2022, 47(5): 1876-1889.]
[13]	赵华伟, 宁正福, 赵天逸, 等. 恒速压汞法在致密储层孔隙结构表征中的适用性[J]. 断块油气田, 2017, 24(3): 413-416.
	[ZHAO H W, NING Z F, ZHAO T Y, et al. Applicability of rate-controlled porosimetry experiment to pore structure characterization of tight oil reservoirs[J]. Fault-Block Oil & Gas Field, 2017, 24(3): 413-416.]
[14]	贺伟, 钟孚勋, 贺承祖, 等. 储层岩石孔隙的分形结构研究和应用[J]. 天然气工业, 2000, 20(2): 67-70.
	[HE W, ZHONG F X, HE C Z, et al. Fractal texture research on the pores in reservoir rocks and its application[J]. Natural Gas Industry, 2000, 20(2): 67-70.]
[15]	张驰, 关平, 张济华, 等. 分形理论表征非常规油气储层孔隙结构特征研究进展[J]. 北京大学学报(自然科学版), 2023, 59(5): 897-908.
	[ZHANG C, GUAN P, ZHANG J H, et al. A review of the progress on fractal theory to characterize the pore structure of unconventional oil and gas reservoirs[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 2023, 59(5): 897-908.]
[16]	MANDELBROT B B, AIZENMAN M. Fractals: Form, chance, and dimension[J]. Physics Today, 1979, 32(5): 65-66.
[17]	MANDELBROT B B. The fractal geometry of nature[M]. San Francisco: W. H. Freeman, 1982.
[18]	LI Z T, LIU D M, CAI Y D, et al. Adsorption pore structure and its fractal characteristics of coals by N₂ adsorption/desorption and FESEM image analyses[J]. Fuel, 2019, 257: 116031. doi: 10.1016/j.fuel.2019.116031 URL
[19]	HAN C C, LI G, DAN S H, et al. Study of fractal and multifractal features of pore structure in tight sandstone reservoirs of the Permian Lucaogou Formation, Jimsar Sag, Junggar Basin, northwest China[J]. ACS Omega, 2022, 7(35): 31352-31366. doi: 10.1021/acsomega.2c03717 pmid: 36092574
[20]	朱仰其, 张惠, 姚志刚, 等. 基于高压压汞实验致密砂岩储层分形特征及控制因素[J]. 科学技术与工程, 2024, 24(20): 8419-8428.
	[ZHU Y Q, ZHANG H, YAO Z G, et al. Fractal characteristics and controlling factors of tight sandstone reservoirs based on high-pressure mercury injection experiments[J]. Science Technology and Engineering, 2024, 24(20): 8419-8428.]
[21]	刘硕, 王飞, 于瑞, 等. 致密砂岩储层微观孔喉结构及其分形特征[J]. 吉林大学学报(地球科学版), 2024, 54(1): 96-107.
	[LIU S, WANG F, YU R, et al. Micro pore throat structure and fractal characteristics of tight sandstone reservoir[J]. Journal of Jilin University (Earth Science Edition), 2024, 54(1): 96-107.]
[22]	冯阵东, 周永, 吴伟, 等. 非均质砂岩储层压汞分形特征与储层评价[J]. 中国石油大学学报(自然科学版), 2021, 45(6): 25-34.
	[FENG Z D, ZHOU Y, WU W, et al. Mercury injection fractal characteristics and reservoir evaluation of heterogeneous sandstone reservoirs[J]. Journal of China University of Petroleum (Edition of Natural Science), 2021, 45(6): 25-34.]
[23]	李昊远, 庞强, 魏克颖, 等. 致密砂岩储层孔隙结构分形特征对气水渗流规律的影响: 以苏里格气田东南部桃2区块山1段为例[J]. 断块油气田, 2023, 30(2): 177-185.
	[LI H Y, PANG Q, WEI K Y, et al. Influence of pore structure fractal features of tight sandstone reservoir on gas-water seepage law: A case study of Shan 1 Member in Tao 2 block of southeastern Sulige Gas Field[J]. Fault-Block Oil & Gas Field, 2023, 30(2): 177-185.]
[24]	张宇, 李小明, 陈宇杰, 等. 基于核磁共振实验对页岩孔隙结构及分形特征研究: 以荆门地区YT2 井五峰组—龙马溪组为例[J]. 中国煤炭地质, 2023, 35(5): 26-33.
	[ZHANG Y, LI X M, CHEN Y J, et al. Research on pore structure and fractal characteristics of shale based on nuclear magnetic resonance experiments: Taking the Wufeng Formation-Longmaxi Formation of well YT2 in Jingmen area as an example[J]. Coal Geology of China, 2023, 35(5): 26-33.]
[25]	郝栋, 杨晨, 刘晓东, 等. 鄂尔多斯盆地白豹油田致密砂岩储层孔喉结构及NMR分形特征[J]. 西安石油大学学报(自然科学版), 2021, 36(5): 34-45.
	[HAO D, YANG C, LIU X D, et al. Pore throat structure and NMR fractal characteristics of tight sandstone reservoirs in baibao oilfield, Ordos Basin[J]. Journal of Xi’an Shiyou University (Natural Science Edition), 2021, 36(5): 34-45.]
[26]	XIN Y, WANG G W, LIU B C, et al. Pore structure evaluation in ultra-deep tight sandstones using NMR measurements and fractal analysis[J]. Journal of Petroleum Science and Engineering, 2022, 211: 110180. doi: 10.1016/j.petrol.2022.110180 URL
[27]	刘立航, 胡海燕, 詹学锋, 等. 泸州区块龙马溪组深层页岩孔隙结构及NMR分形特征[J]. 中国科技论文, 2023, 18(5): 501-511.
	[LIU L H, HU H Y, ZHAN X F, et al. Pore structure and NMR fractal characteristics of deep shale of Longmaxi Formation in Luzhou block, Sichuan basin[J]. China Sciencepaper, 2023, 18(5): 501-511.]
[28]	ZHOU L, KANG Z H. Fractal characterization of pores in shales using NMR: A case study from the Lower Cambrian Niutitang Formation in the Middle Yangtze Platform, Southwest China[J]. Journal of Natural Gas Science and Engineering, 2016, 35: 860-872. doi: 10.1016/j.jngse.2016.09.030 URL
[29]	YU B M, LI J H. Some fractal characters of porous media[J]. Fractals, 2001, 9(3): 365-372. doi: 10.1142/S0218348X01000804 URL
[30]	YU B M, CHENG P. A fractal permeability model for bi-dispersed porous media[J]. International Journal of Heat and Mass Transfer, 2002, 45(14): 2983-2993. doi: 10.1016/S0017-9310(02)00014-5 URL
[31]	TAN Q G, KANG Y L, YOU L J, et al. A comprehensive insight into the multiscale pore structure characterization of saline-lacustrine tight carbonate reservoir[J]. Journal of Petroleum Science and Engineering, 2020, 187: 106744. doi: 10.1016/j.petrol.2019.106744 URL
[32]	SHAN C G, ZHAO W W, WANG F Q, et al. Nanoscale pore structure heterogeneity and its quantitative characterization in Chang7 lacustrine shale of the southeastern Ordos Basin, China[J]. Journal of Petroleum Science and Engineering, 2020, 187: 106754. doi: 10.1016/j.petrol.2019.106754 URL
[33]	LI K W. Analytical derivation of Brooks-Corey type capillary pressure models using fractal geometry and evaluation of rock heterogeneity[J]. Journal of Petroleum Science and Engineering, 2010, 73(1/2): 20-26. doi: 10.1016/j.petrol.2010.05.002 URL
[34]	ZHANG Z Y, WELLER A. Fractal dimension of pore-space geometry of an Eocene sandstone formation[J]. Geophysics, 2014, 79(6): D377-D387.

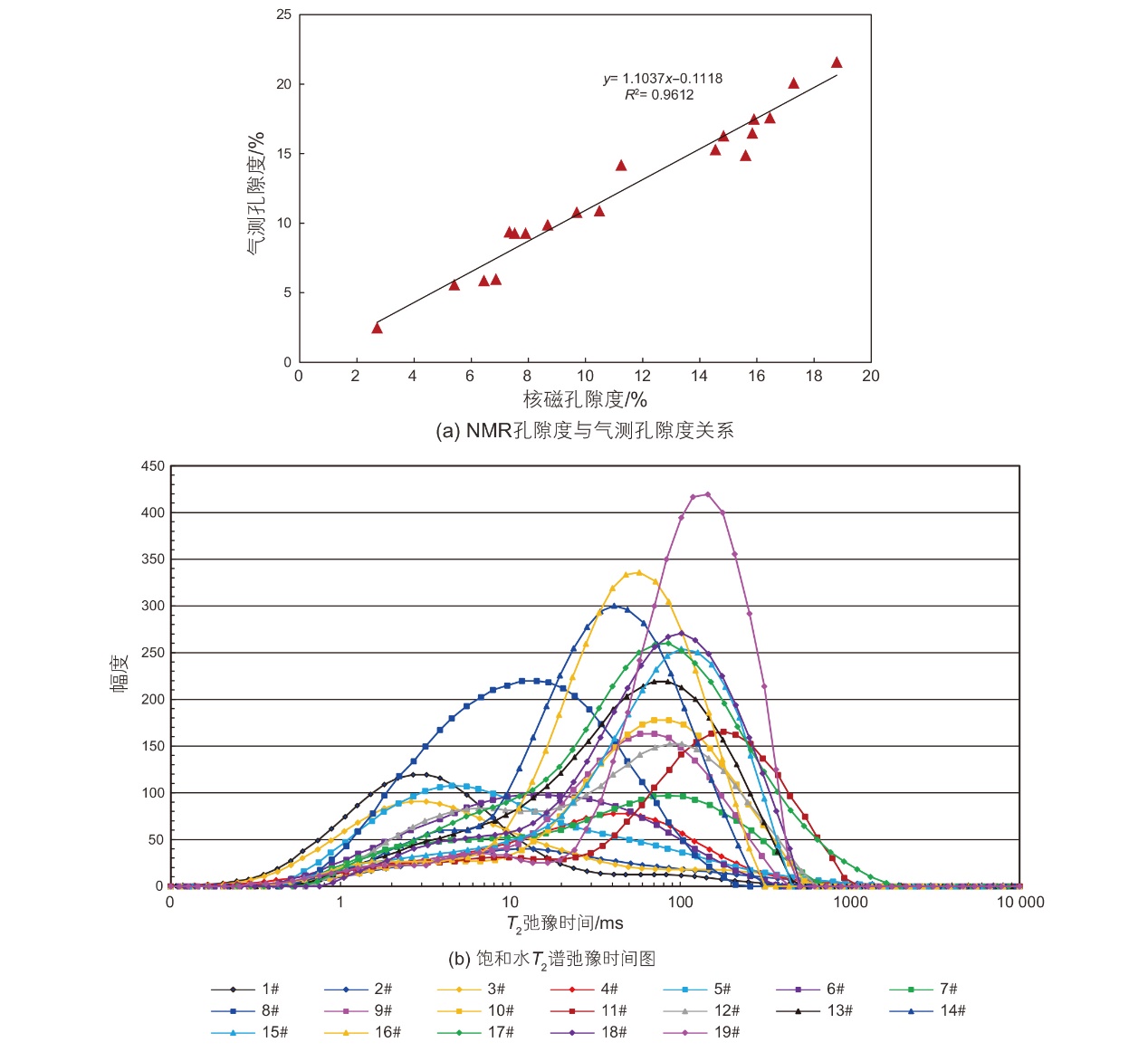

样品序号	井深/m	核磁孔隙度/%	束缚水饱和度/%	可动流体饱和度/%	T₂截止值/ms
1#	5334.28	6.87	70.38	29.62	5.57
2#	5675.66	2.71	54.92	45.08	16.68
3#	5335.93	6.45	52.94	47.06	4.64
4#	5675.80	5.41	40.18	59.82	16.68
5#	4887.41	7.90	56.94	43.06	9.64
6#	5042.62	7.34	42.67	57.33	9.64
7#	4878.98	7.52	33.37	66.63	13.89
8#	5338.59	15.60	42.03	57.97	8.03
9#	5676.20	8.68	25.70	74.30	20.03
10#	5676.81	9.69	20.54	79.46	20.03
11#	4997.45	10.49	17.70	82.30	16.68
12#	4888.09	11.25	34.50	65.50	16.68
13#	5005.73	15.84	17.20	82.80	9.64
14#	5678.60	14.83	16.94	83.06	9.64
15#	5004.53	14.55	29.80	70.20	34.65
16#	5678.46	15.90	63.23	36.77	59.95
17#	4899.91	17.29	20.10	79.90	13.89
18#	5006.98	16.46	12.73	87.27	9.64
19#	4986.53	18.79	14.15	85.85	34.65

样品序号	井深/m	核磁孔隙度/%	束缚水饱和度/%	可动流体饱和度/%	T₂截止值/ms
1#	5334.28	6.87	70.38	29.62	5.57
2#	5675.66	2.71	54.92	45.08	16.68
3#	5335.93	6.45	52.94	47.06	4.64
4#	5675.80	5.41	40.18	59.82	16.68
5#	4887.41	7.90	56.94	43.06	9.64
6#	5042.62	7.34	42.67	57.33	9.64
7#	4878.98	7.52	33.37	66.63	13.89
8#	5338.59	15.60	42.03	57.97	8.03
9#	5676.20	8.68	25.70	74.30	20.03
10#	5676.81	9.69	20.54	79.46	20.03
11#	4997.45	10.49	17.70	82.30	16.68
12#	4888.09	11.25	34.50	65.50	16.68
13#	5005.73	15.84	17.20	82.80	9.64
14#	5678.60	14.83	16.94	83.06	9.64
15#	5004.53	14.55	29.80	70.20	34.65
16#	5678.46	15.90	63.23	36.77	59.95
17#	4899.91	17.29	20.10	79.90	13.89
18#	5006.98	16.46	12.73	87.27	9.64
19#	4986.53	18.79	14.15	85.85	34.65

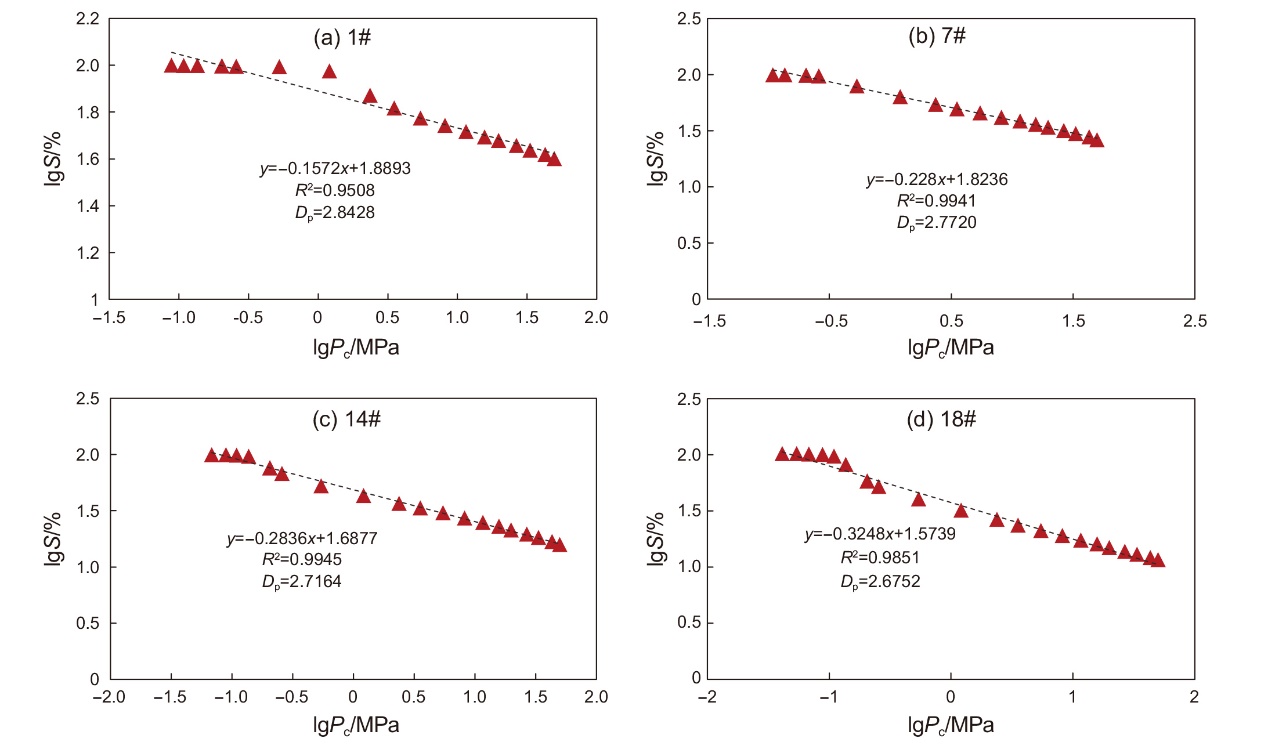

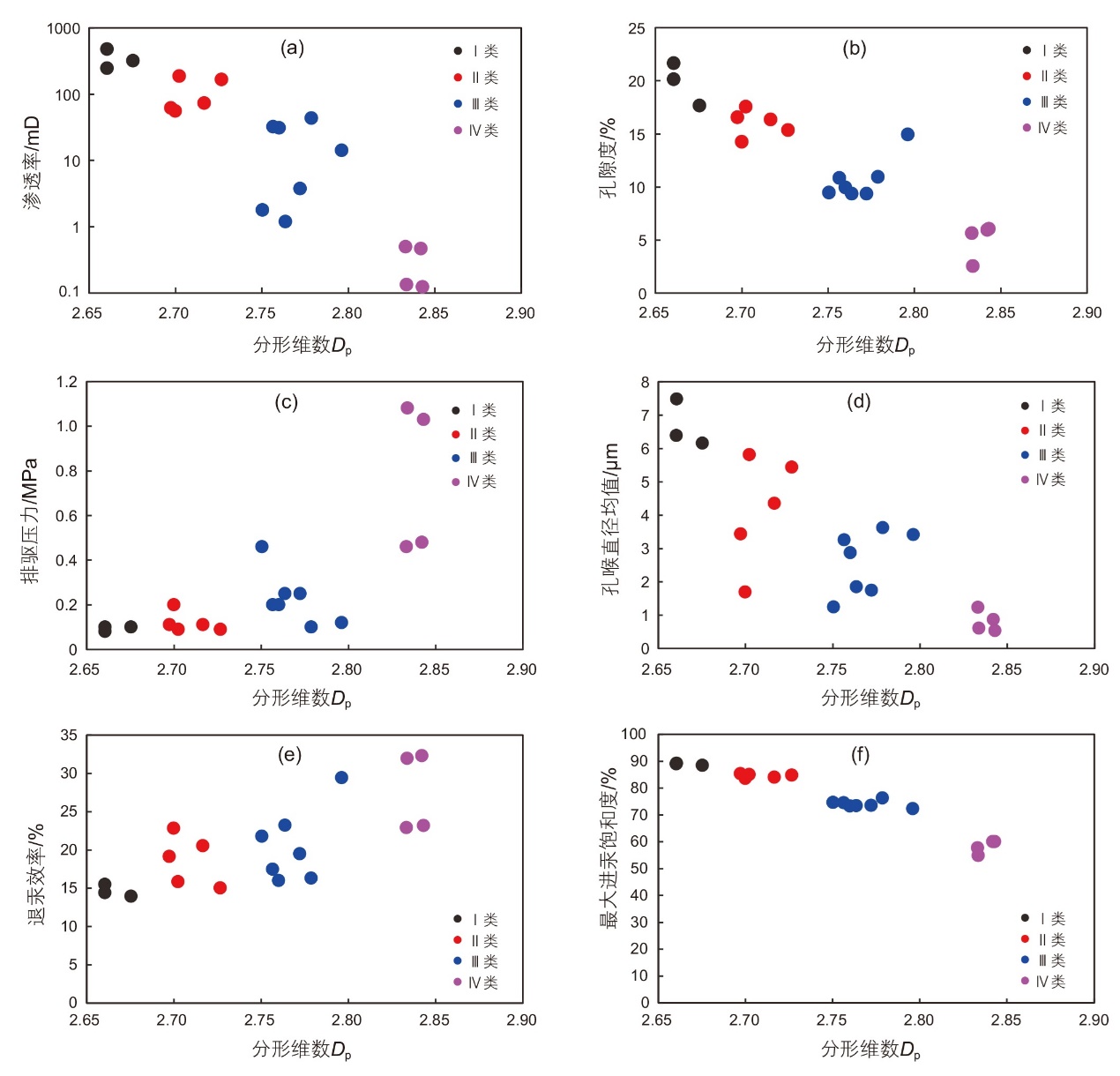

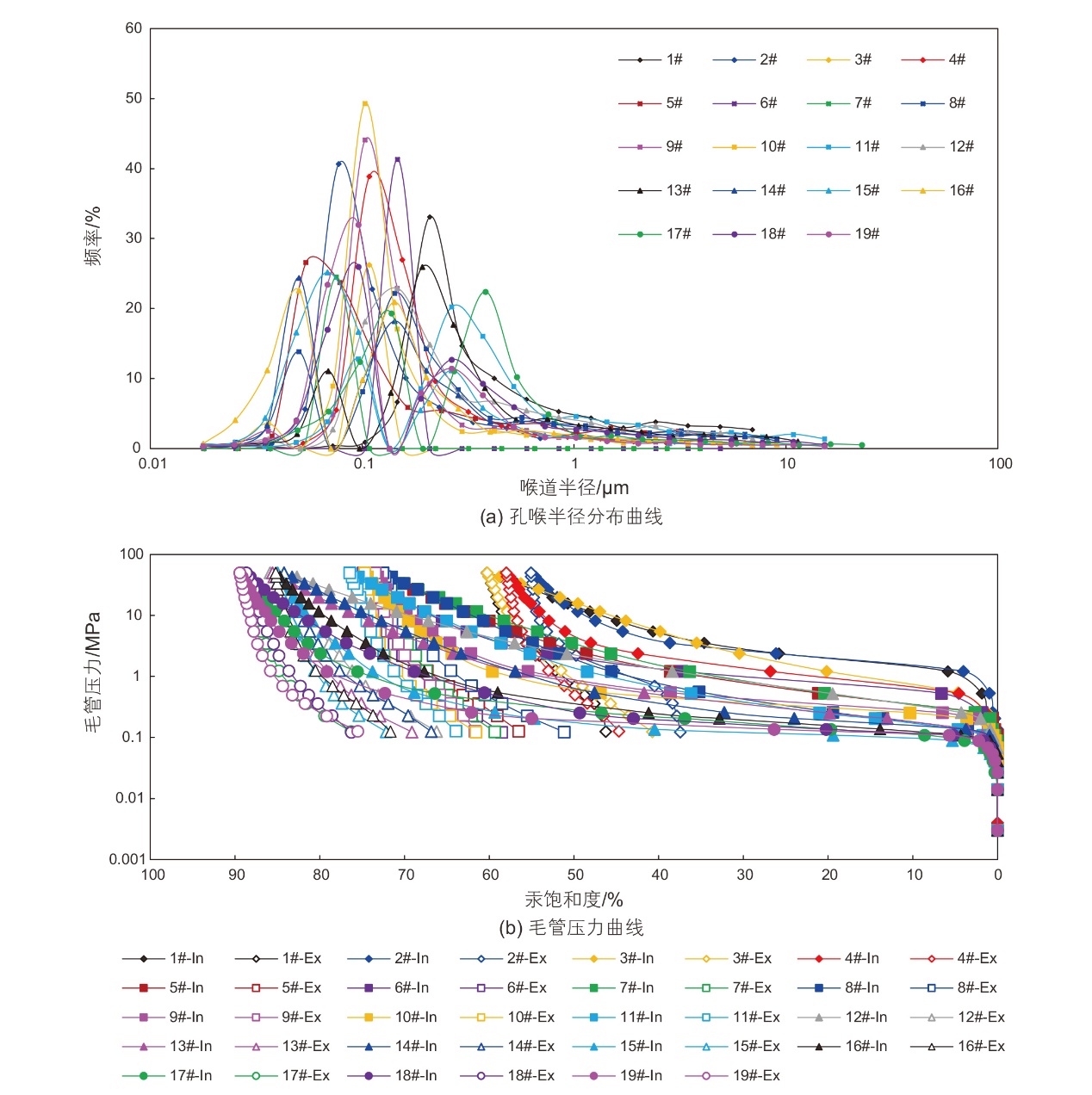

样品序号	排驱压力/MPa	孔喉直径均值/μm	退汞效率/%	最大进汞饱和度/%	分形维数D_p/无因次
1#	1.03	0.52	23.25	60.249	2.8428
2#	1.08	0.60	32.01	55.071	2.8335
3#	0.48	0.86	32.36	60.209	2.8418
4#	0.46	1.22	22.96	57.985	2.8330
5#	0.25	1.84	23.27	73.654	2.7634
6#	0.46	1.23	21.84	74.859	2.7502
7#	0.25	1.73	19.57	73.759	2.7720
8#	0.12	3.40	29.51	72.522	2.7959
9#	0.20	2.86	16.05	73.464	2.7598
10#	0.20	3.25	17.56	74.680	2.7563
11#	0.10	3.61	16.39	76.474	2.7785
12#	0.20	1.68	37.15	83.847	2.6997
13#	0.11	3.42	19.21	85.562	2.6971
14#	0.11	4.34	20.62	84.209	2.7164
15#	0.09	5.43	15.08	84.982	2.7264
16#	0.09	5.80	15.91	85.197	2.7021
17#	0.08	6.38	14.46	89.205	2.6602
18#	0.10	6.15	14.00	88.680	2.6752
19#	0.10	7.47	15.58	89.440	2.6603

样品序号	排驱压力/MPa	孔喉直径均值/μm	退汞效率/%	最大进汞饱和度/%	分形维数D_p/无因次
1#	1.03	0.52	23.25	60.249	2.8428
2#	1.08	0.60	32.01	55.071	2.8335
3#	0.48	0.86	32.36	60.209	2.8418
4#	0.46	1.22	22.96	57.985	2.8330
5#	0.25	1.84	23.27	73.654	2.7634
6#	0.46	1.23	21.84	74.859	2.7502
7#	0.25	1.73	19.57	73.759	2.7720
8#	0.12	3.40	29.51	72.522	2.7959
9#	0.20	2.86	16.05	73.464	2.7598
10#	0.20	3.25	17.56	74.680	2.7563
11#	0.10	3.61	16.39	76.474	2.7785
12#	0.20	1.68	37.15	83.847	2.6997
13#	0.11	3.42	19.21	85.562	2.6971
14#	0.11	4.34	20.62	84.209	2.7164
15#	0.09	5.43	15.08	84.982	2.7264
16#	0.09	5.80	15.91	85.197	2.7021
17#	0.08	6.38	14.46	89.205	2.6602
18#	0.10	6.15	14.00	88.680	2.6752
19#	0.10	7.47	15.58	89.440	2.6603

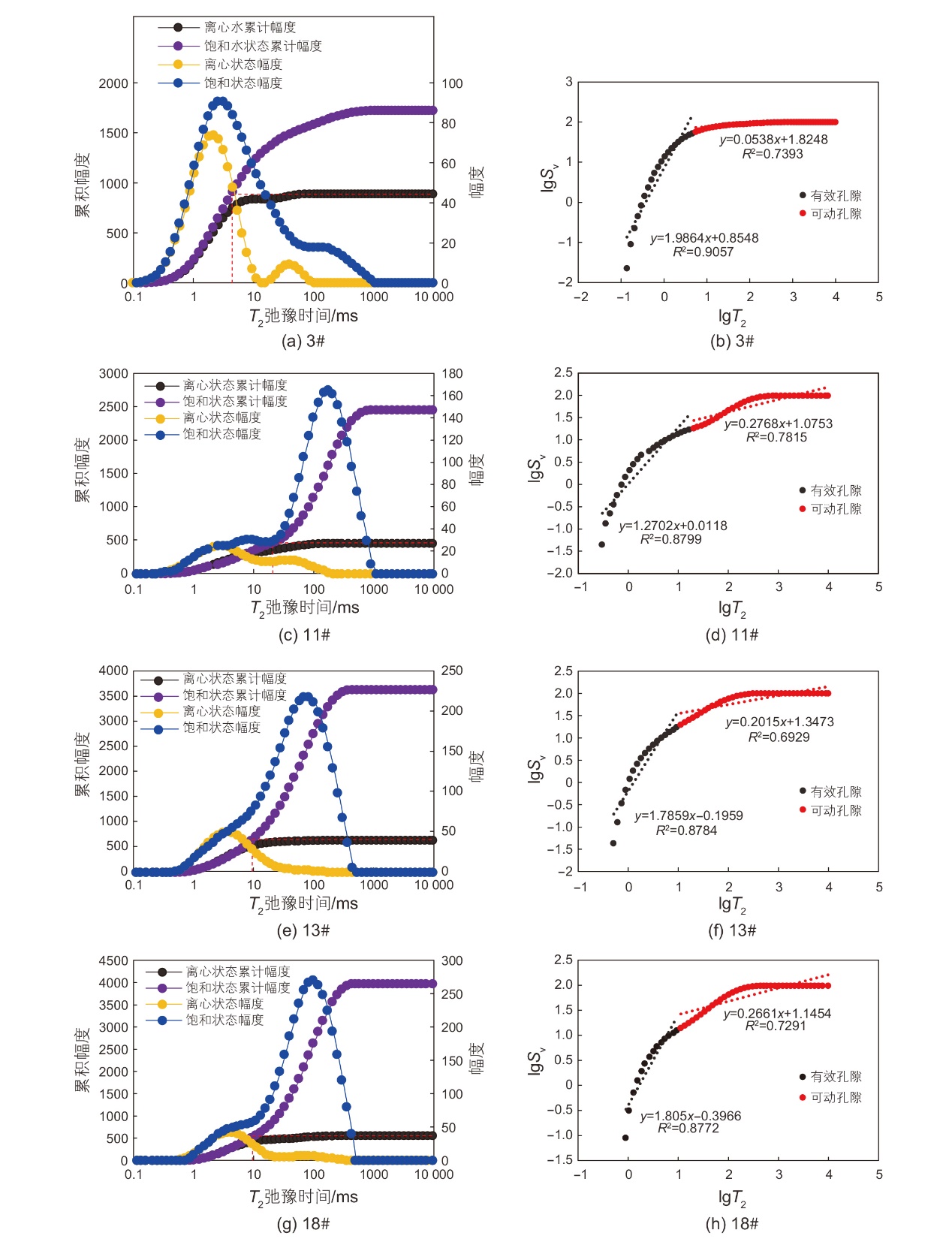

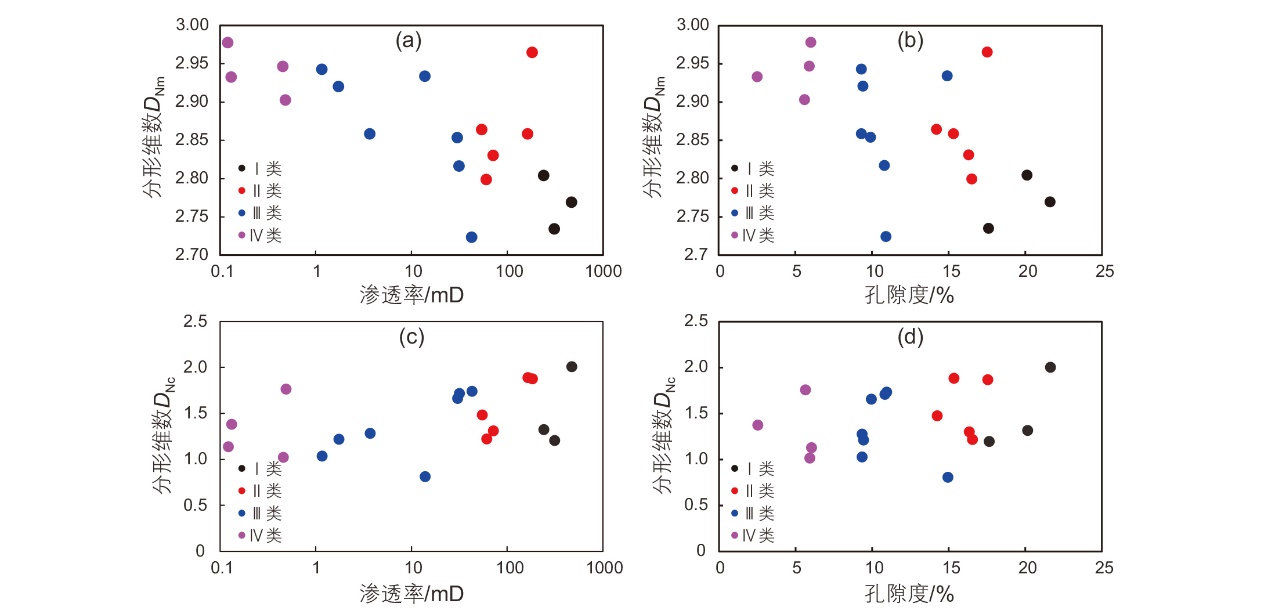

样品序号	可动孔隙(T₂>T_2c)			有效孔隙(T₂<T_2c)
样品序号	回归方程	D_Nm	R²	回归方程	D_Nc	R²
1#	y=0.0227x+1.9246	2.9773	0.6298	y=1.8724x+0.9211	1.1276	0.9311
2#	y=0.0679x+1.7733	2.9321	0.7458	y=1.6276x+0.1886	1.3724	0.8632
3#	y=0.0538x+1.8248	2.9462	0.7393	y=1.9864x+0.8548	1.0136	0.9057
4#	y=0.0977x+1.6810	2.9023	0.6281	y=1.2457x+0.4048	1.7543	0.9026
5#	y=0.0577x+1.8124	2.9423	0.7135	y=1.9737x+0.3348	1.0263	0.8558
6#	y=0.0800x+1.7439	2.9200	0.6018	y=1.7896x+0.2541	1.2104	0.8959
7#	y=0.1422x+1.5363	2.8578	0.7276	y=1.7259x+0.0495	1.2741	0.8657
8#	y=0.0667x+1.7901	2.9333	0.5212	y=2.1966x+0.0456	0.8034	0.8980
9#	y=0.1468x+1.5221	2.8532	0.5906	y=1.3472x-0.0828	1.6528	0.8742
10#	y=0.1839x+1.4012	2.8161	0.6381	y=1.2943x-0.0690	1.2943	0.9050
11#	y=0.2768x+1.0753	2.7232	0.7815	y=1.2702x+0.0118	1.7298	0.8799
12#	y=0.1366x+1.5502	2.8634	0.6990	y=1.5278x+0.0185	1.4722	0.8326
13#	y=0.2015x+1.3473	2.7985	0.6929	y=1.7859x-0.1959	1.2141	0.8784
14#	y=0.1700x+1.4609	2.8300	0.5878	y=1.7006x-0.1565	1.2994	0.8902
15#	y=0.1421x+1.5308	2.8579	0.5834	y=1.1196x+0.0242	1.8804	0.8475
16#	y=0.0356x+1.8809	2.9644	0.3967	y=1.1352x-0.0577	1.8648	0.9176
17#	y=0.1965x+1.3498	2.8035	0.7297	y=1.6856x-0.2697	1.3144	0.8483
18#	y=0.2661x+1.1454	2.7339	0.7291	y=1.8050x-0.3966	1.8050	0.8772
19#	y=0.2312x+1.2340	2.7688	0.5901	y=1.0005x-0.0801	1.9995	0.8803
